ACTIVE III

Catalog number: 09-C103W

Parameters

Download materials
Choose COLOUR OF FRAME

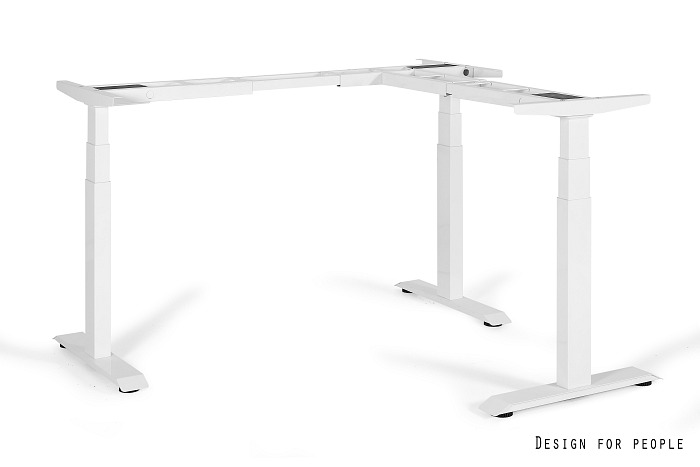

ACTIVE III - WHITE - ADJUSTABLE FRAME

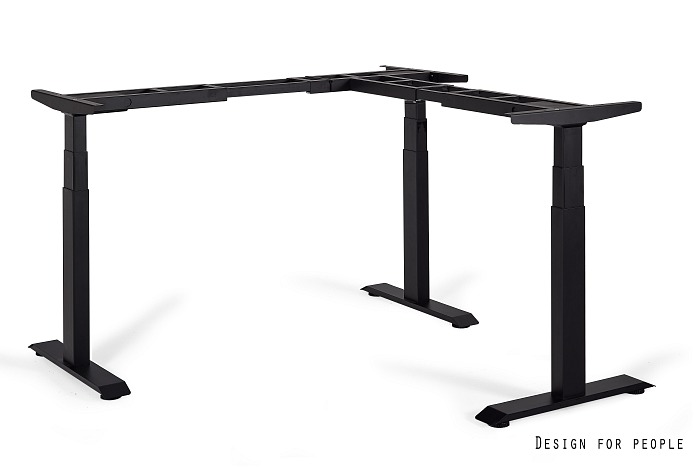

ACTIVE III - BLACK - ADJUSTABLE FRAME

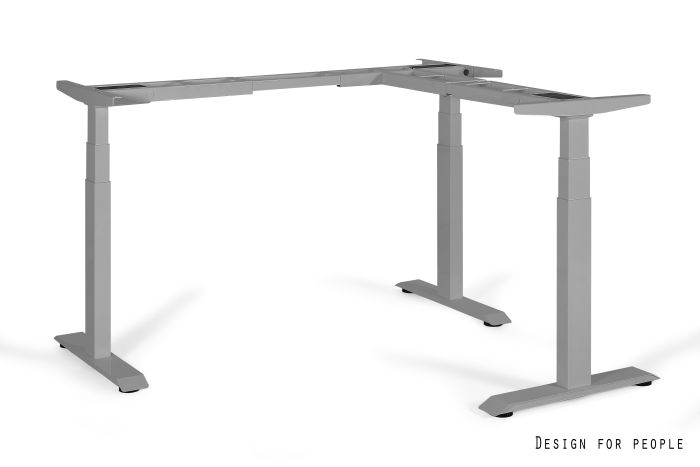

ACTIVE III - GREY - ADJUSTABLE FRAME

Description

  • Frame made of powder-coated metal in white, black or gray
  • 3-column frame

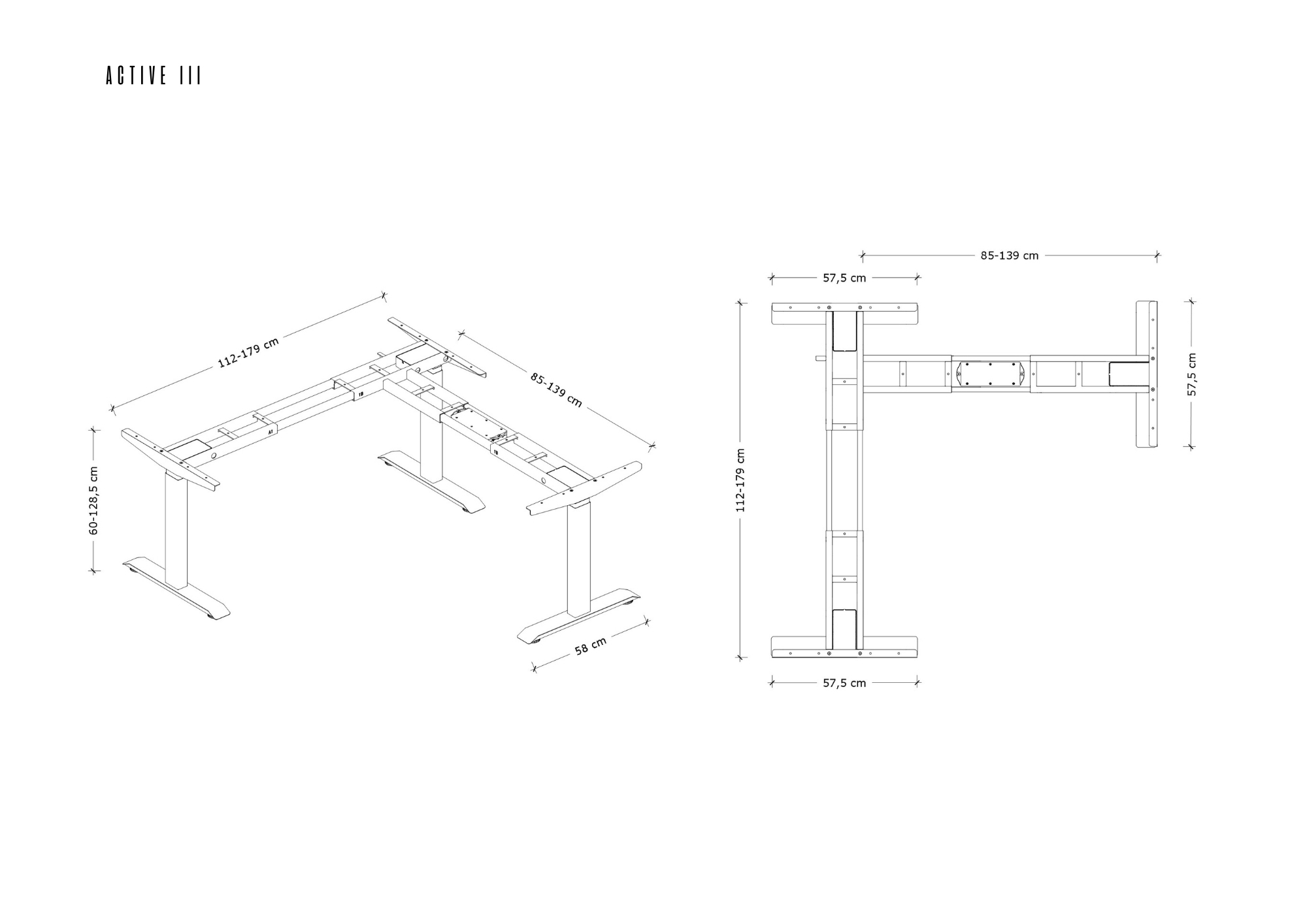

  • Frame height range 600-1250 mm (3 sections)

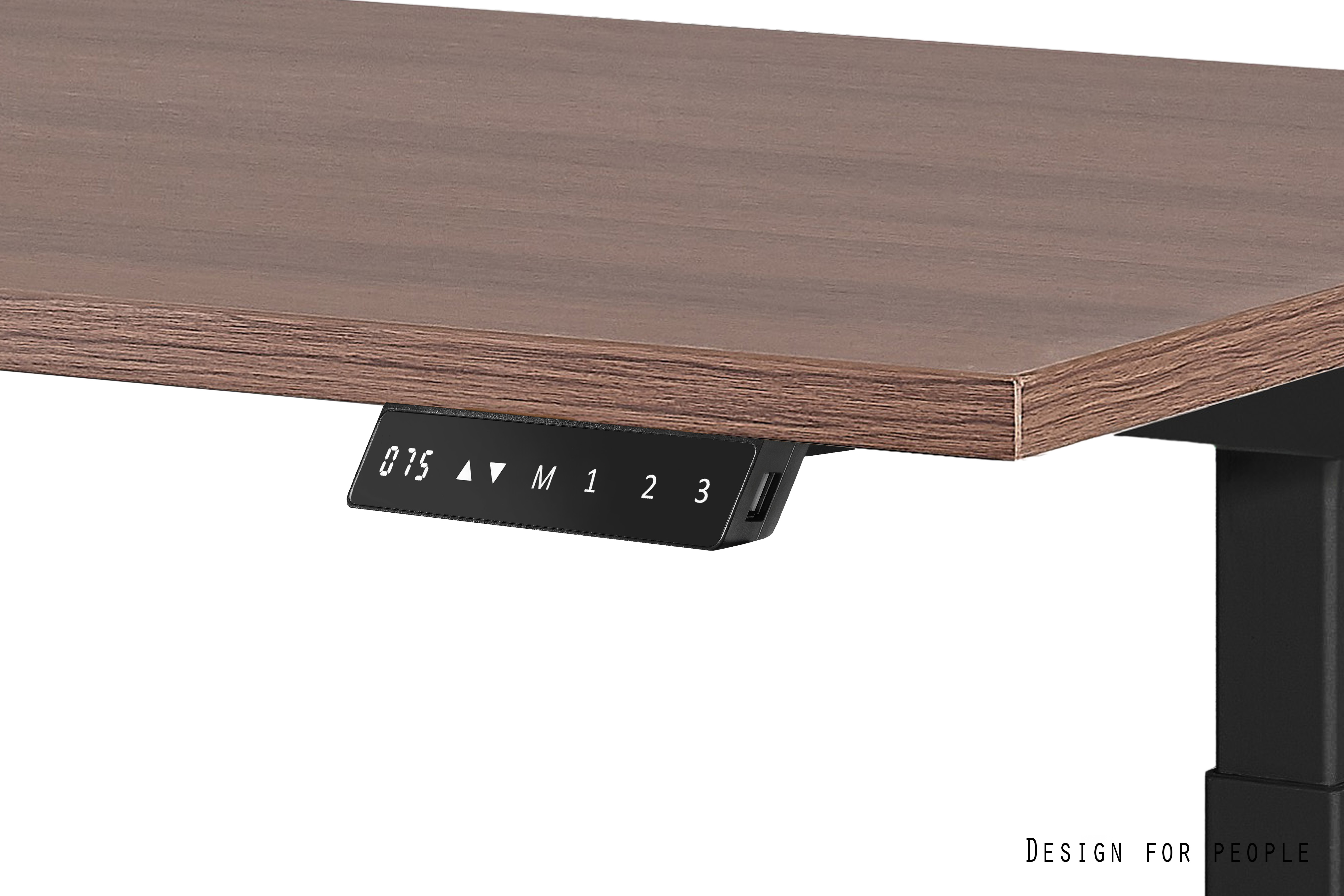

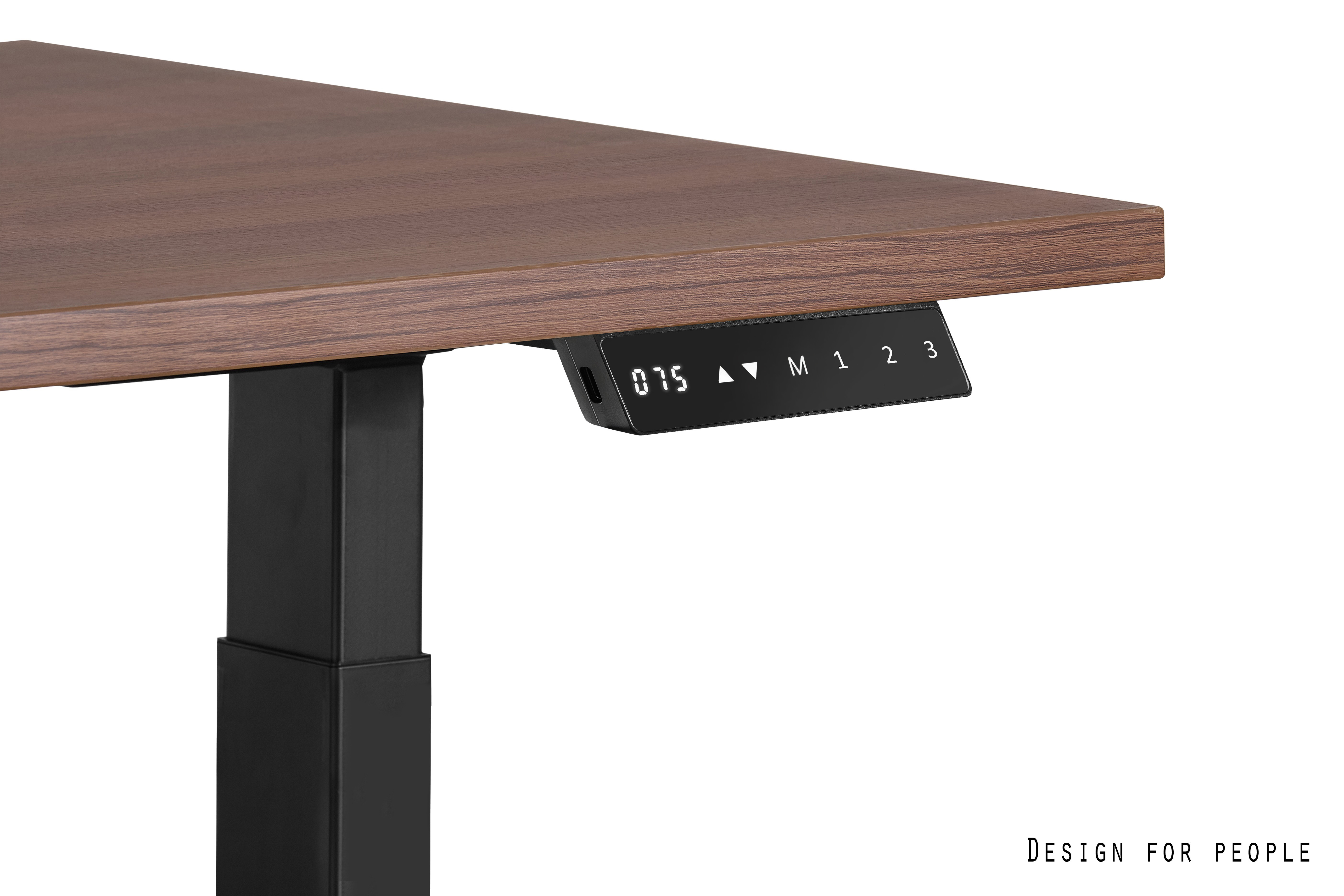

  • Control panel with LED display with possibility of storing 3 positions
  • Control panel equipped with USB-A and USB-C ports
  • Configuration of maximum/minimum height limits
  • 3 motors with a speed of 50 mm/s
  • Soft start/stop
  • Anti-collision system
  • Parental protection (controller lock)
  • Power supply 110-240 V, 50-60Hz
  • Maximum load 150 kg
  • Frame equipped with levelling feet
  • 5-year warranty on the frame
  • 2-year warranty on electronic components


Available colors:

  • Black: RAL9005
  • Gray: RAL9006
  • White: RAL9010


The frame complies with the following standards:
PN-EN 527-1:2011
PN-EN 527-2+A1:2019-08
PN-EN 1730:2013-04



Ask about product
